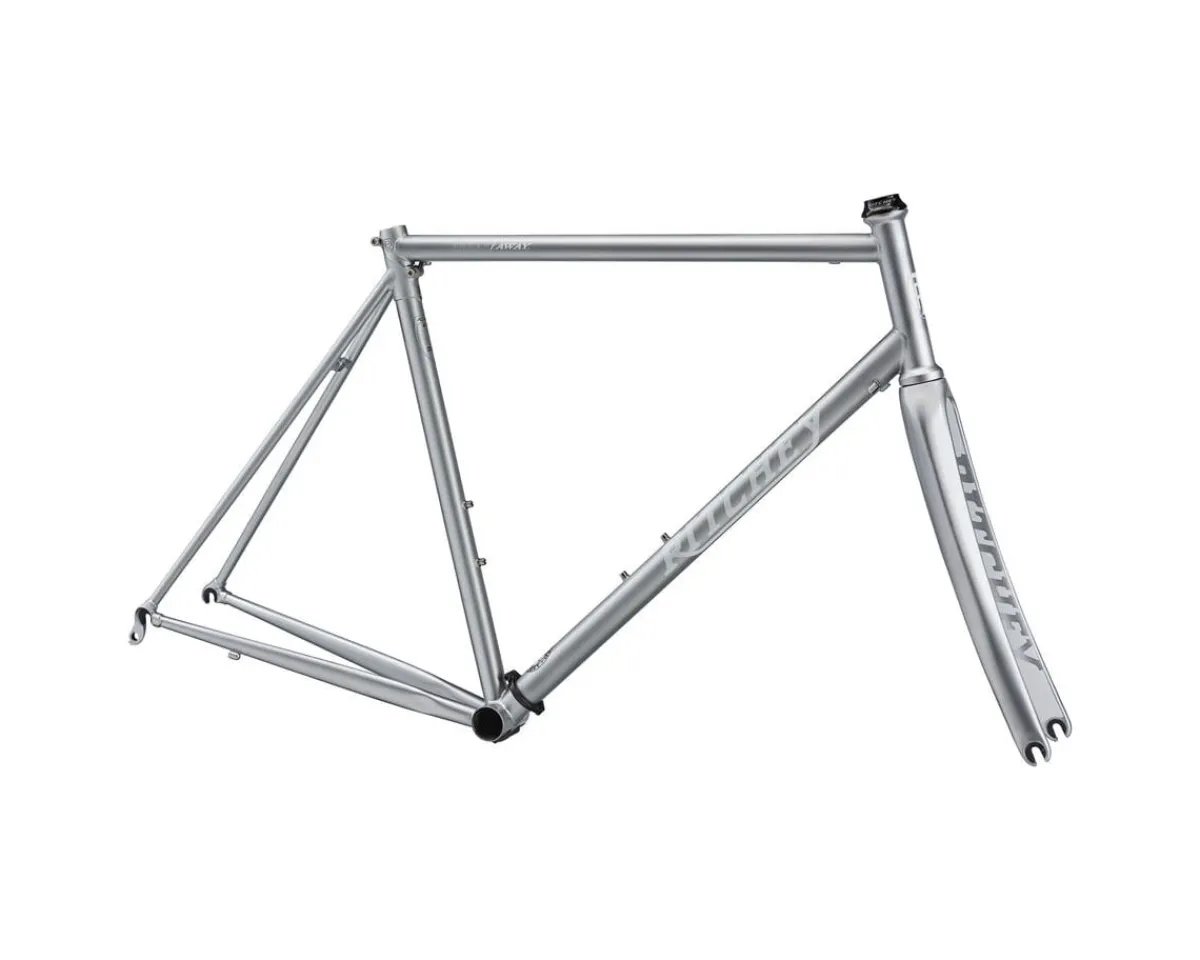

Ritchey Frames|Road Bikes|Road Logic Breakaway Frameset (Silver) (S)

Ritchey Road Logic Breakaway Frame Description:

The Ritchey Road Logic Breakaway Frame’s main feature is its ability to break down and disassemble to fit into its travel case and avoid those pesky baggage fees. However, the Road Logic frame is true to the spirit, specs, and high ride quality of its standard frame sibling. Crafted with heat-treated and triple-butted steel tubing, the Ritchet Road Logic Breakaway frame is a modern classic. Paired with a Ritchey WCS carbon fiber fork, clearance for up to 30mm tires, and a head tube that uses drop-in bearings, the Ritchey Road Logic Breakaway is designed to make the most out of each pedal stroke, no matter where you find yourself.

Features:

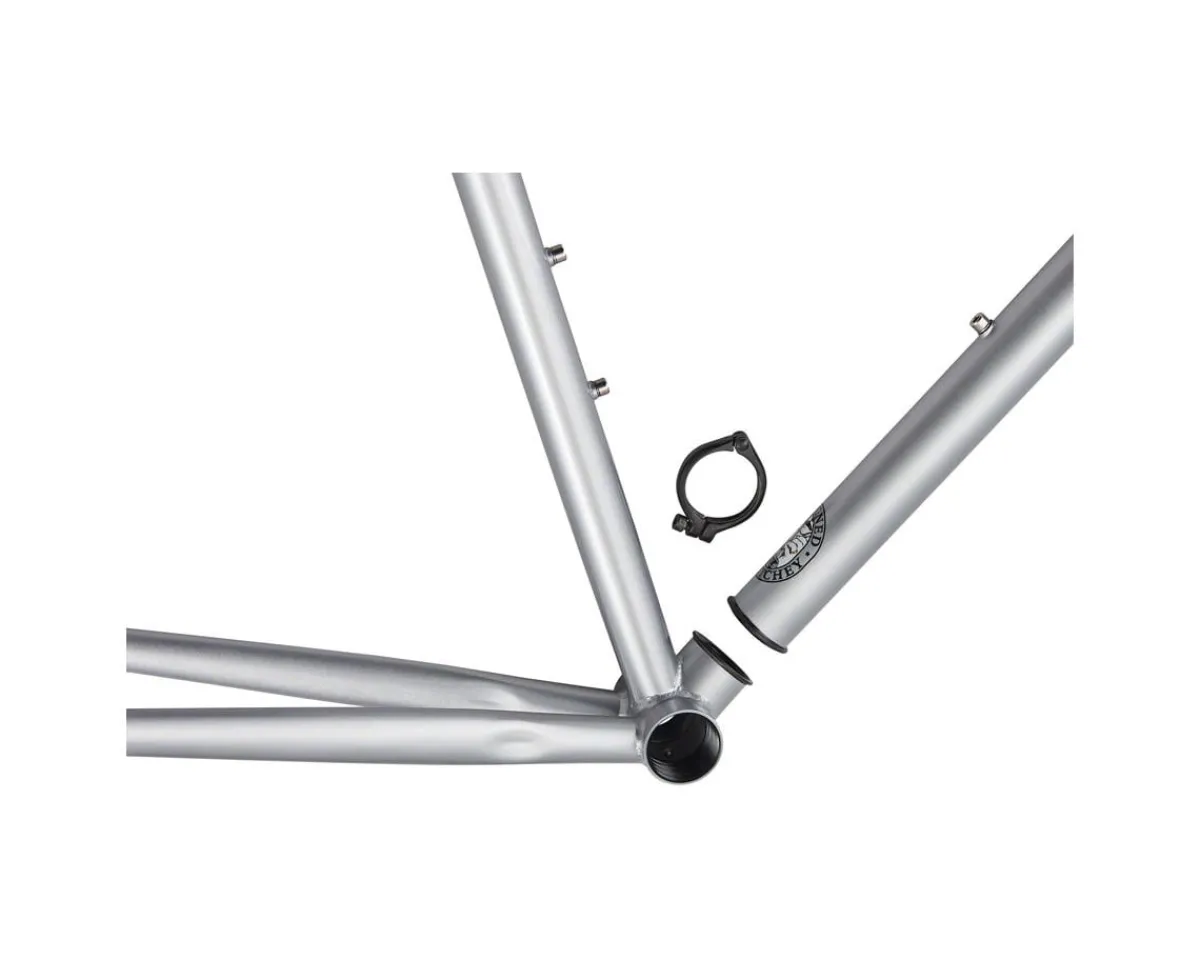

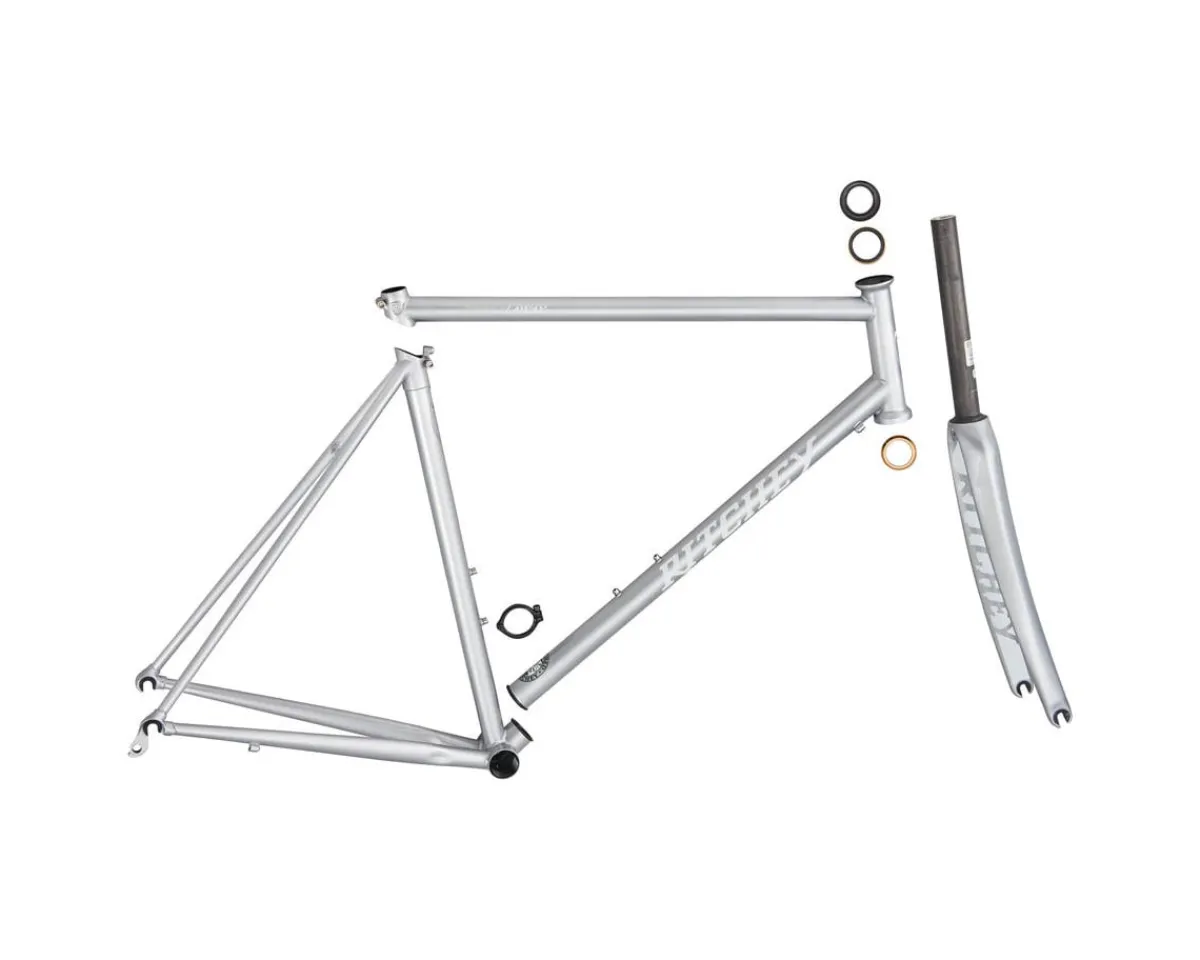

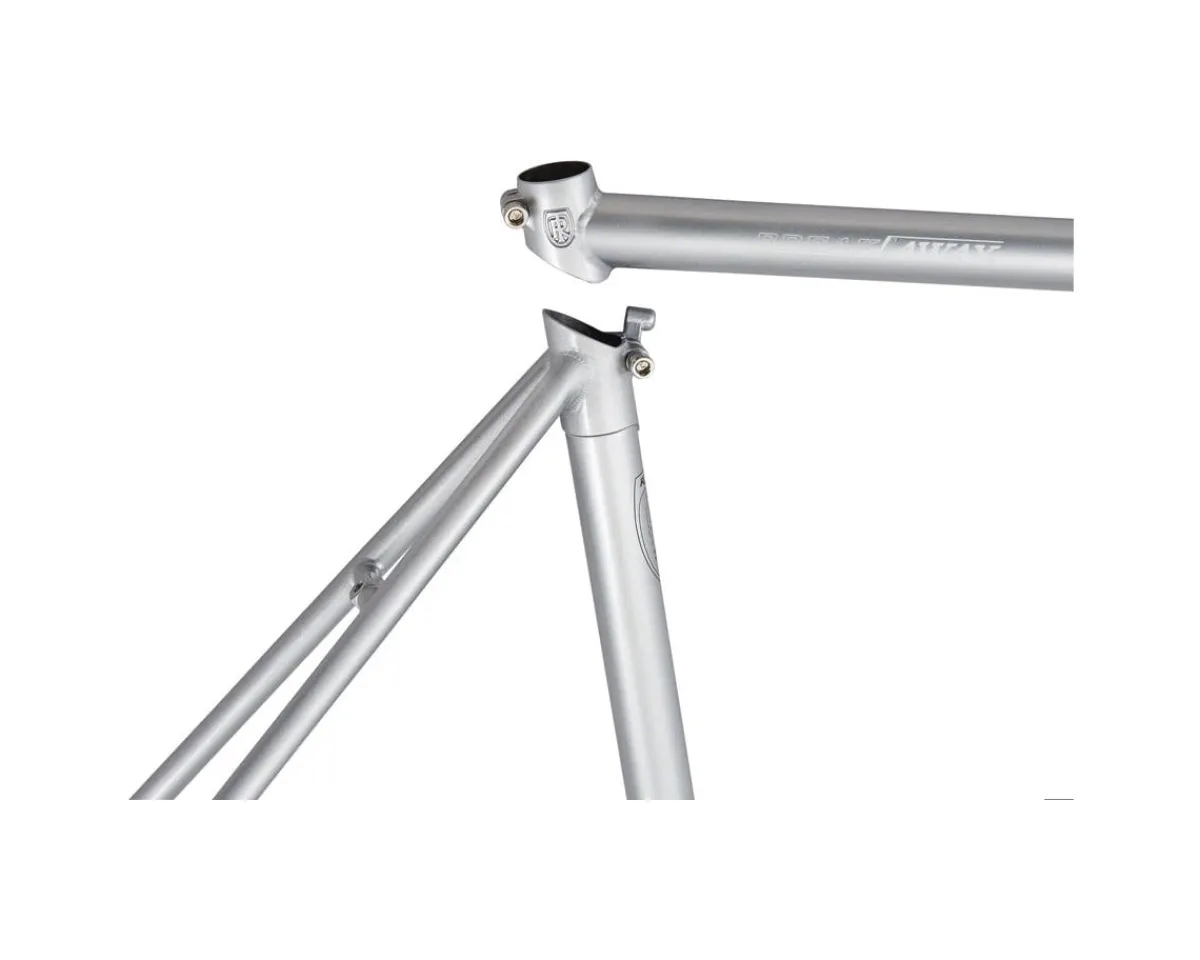

• The bike that travels with you, the Road Logic Break-Away easily and quickly disassembles to fit into its own included sturdy travel case
• TIG welded heat-treated, triple-butted Ritchey Logic steel tubing
• Fits up to 30c tires
• Ritchey WCS Carbon road fork and WCS headset included
• Includes Break-Away travel case and padding protection

Specifications:

• Frame Material: Heat-Treated Steel (Triple-Butted)
• Fork Material: Ritchey WCS Carbon Road Fork (1-1/8″ Steerer Tube)
• Headset: Included
• Headset Size: IS42/28.6 (Upper) | IS42/30 (Lower)
• Brake Compatibility: Rim Brake Only
• Brake Mounts: Caliper
• Rotor Compatibility: –
• Axle Type: Quick Release
• Hub Spacing: QR x 100mm (Front), QR x 135mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8”
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (28.6mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 68mm
• Drivetrain Compatibility: 1x or 2x Compatible (External Routing)
• Chainring Compatibility: 46/30T to 53/39T
• Tire Clearance: 700 x 30c Tire Clearance
• Cable Routing: External
• Dropper Post Routing: No
• Water Bottle Bosses: 2 Mounting Positions (Downtube & Seattube)
• Fender/Rack Mounts: No
• Front Derailleur Mount: 28.6mm Clamp
• Rear Derailleur Hanger: Included
• Color: Silver
• Weight: Frame Weight: 1950g (Size: L) | Fork Weight: 350g (Uncut Steerer)
