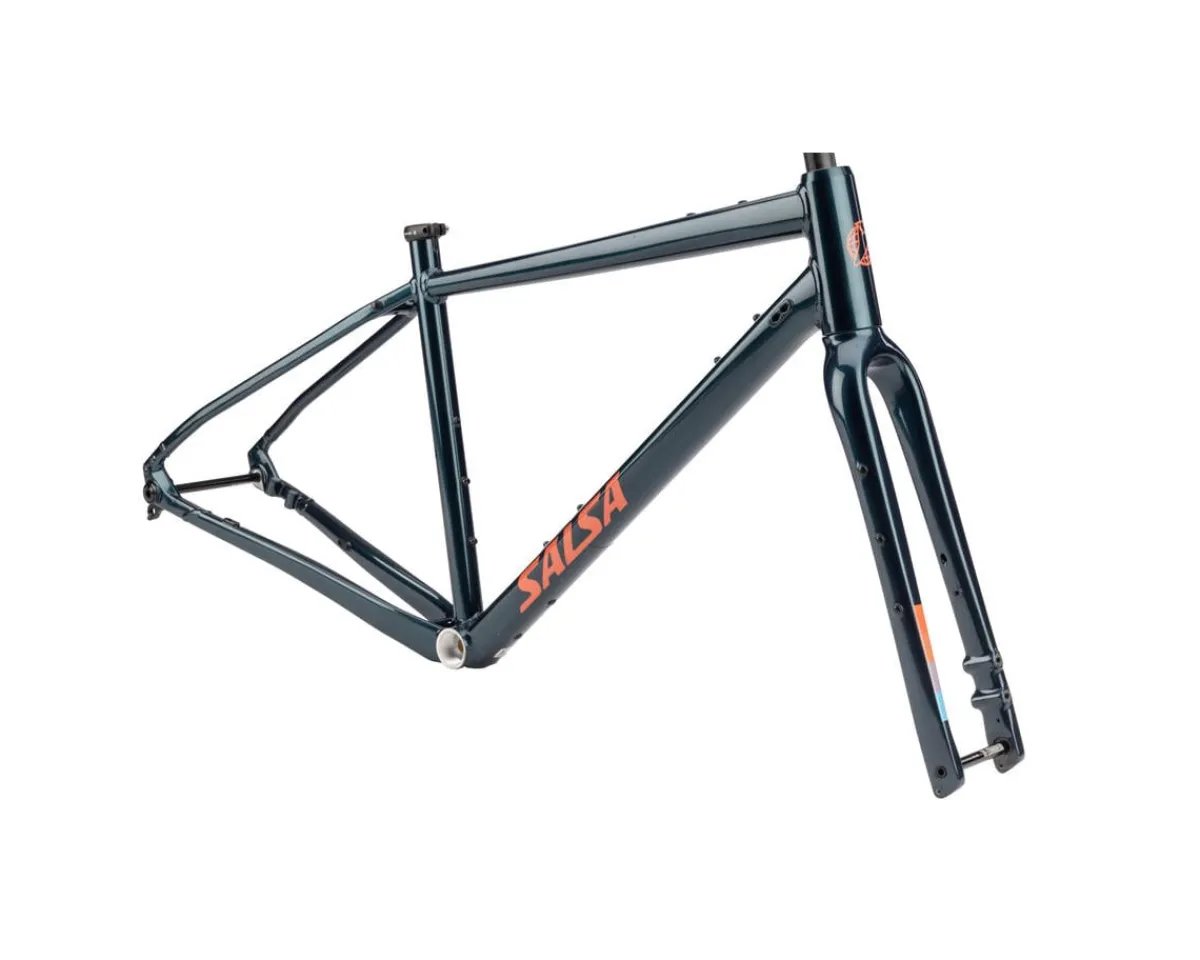

Salsa Frames|Gravel Bikes|Journeyer Frameset (Midnight Blue) (49cm)

Salsa Journeyer Frameset Description:

The Salsa Journeyer makes for a versatile road or gravel machine with a durably light aluminum frame, confidence-inspiring gravel geometry, and ample cargo mount options spread throughout. An approachable, yet highly capable gravel geometry sustains comfort and stability whether gearing up for a group ride or the start of a race. 6061-T6 aluminum makes a durable yet lightweight frame and fork material, staying tough enough for off-road adventures, yet light enough to stay competitive. Every journey may demand something different from every rider; having the right cargo can make all the difference in the world, which is why Journeyer is loaded up with frame and fork mounting options throughout, including front and rear rack compatibility as well as hydration or cargo mounting within the frame, on the top tube, and the down tube and the addition of three-pack mounts on each fork blade. A sleek overall appearance and long-term weather-proof operation are maintained by Journeyer’s internal cable and housing frame routing.

Features:

• 6061-T6 heat-treated aluminum frame balances strength and weight
• Salsa Waxwing V2 carbon fork includes fender mounts, mid-blade rack mounts, and abrasion-resistant plate
• Journeyer gravel geometry provides stability and confidence for all gravel scenarios
• Hydration/cargo options including top tube, triple down tube, seat tube, and three-pack mounts on each fork leg
• Frame and fork fender mounts amplify long haul, all-weather capability
• Clearance for 700c tires up to 50mm or 650b tires up to 50mm in width
• Compatible with internally routed dropper posts for off-road versatility
• Flat-mount brake compatibility unlocks a bevvy of road or gravel caliper options
• Internal routing for brakes, shifters, and dropper post
• Top tube and down tube accessory mounts on frame hold ride essentials
• Compatible with 700c and 650b wheels and tires

Specifications:

• Frame Material: Salsa Journeyer (6061-T6 Alloy)
• Fork Material: Waxwing V2 Carbon Fork (Dual 3-pack mounts)
• Headset: Included
• Headset Size: IS41/28.6 (Upper), IS52/40 (Lower) (Tapered) (1-1/2” to 1-1/8”)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical)
• Brake Mounts: Flat Mount
• Rotor Compatibility: 160 or 180mm (Front), 140 or 160mm (Rear)
• Axle Type: Thru Axle
• Hub Spacing: 12 x 100mm (Front), 12 x 142mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (32.0mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 68mm
• Drivetrain Compatibility: 1x Electronic & Mechanical, 2x Electronic & Mechanical
• Chainring Compatibility: 1x crankset: 42t max.; 2x crankset: 48/33t max.
• Tire Clearance:700c x 50 mm or 650b x 55 mm (27.5 x 2.1″)
• Cable Routing: Internal
• Dropper Post Routing: Yes (Mechanical port on top of downtube)
• Water Bottle Bosses:(49cm frame: one in main triangle, 51–56cm frames: two in main triangle, 57–60cm frames: three in main triangle)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: 31.8mm Clamp
• Rear Derailleur Hanger: Included
• Model Year: 2026
• Color: Midnight Blue
• Weight: 5 lbs 7 oz (56cm)
