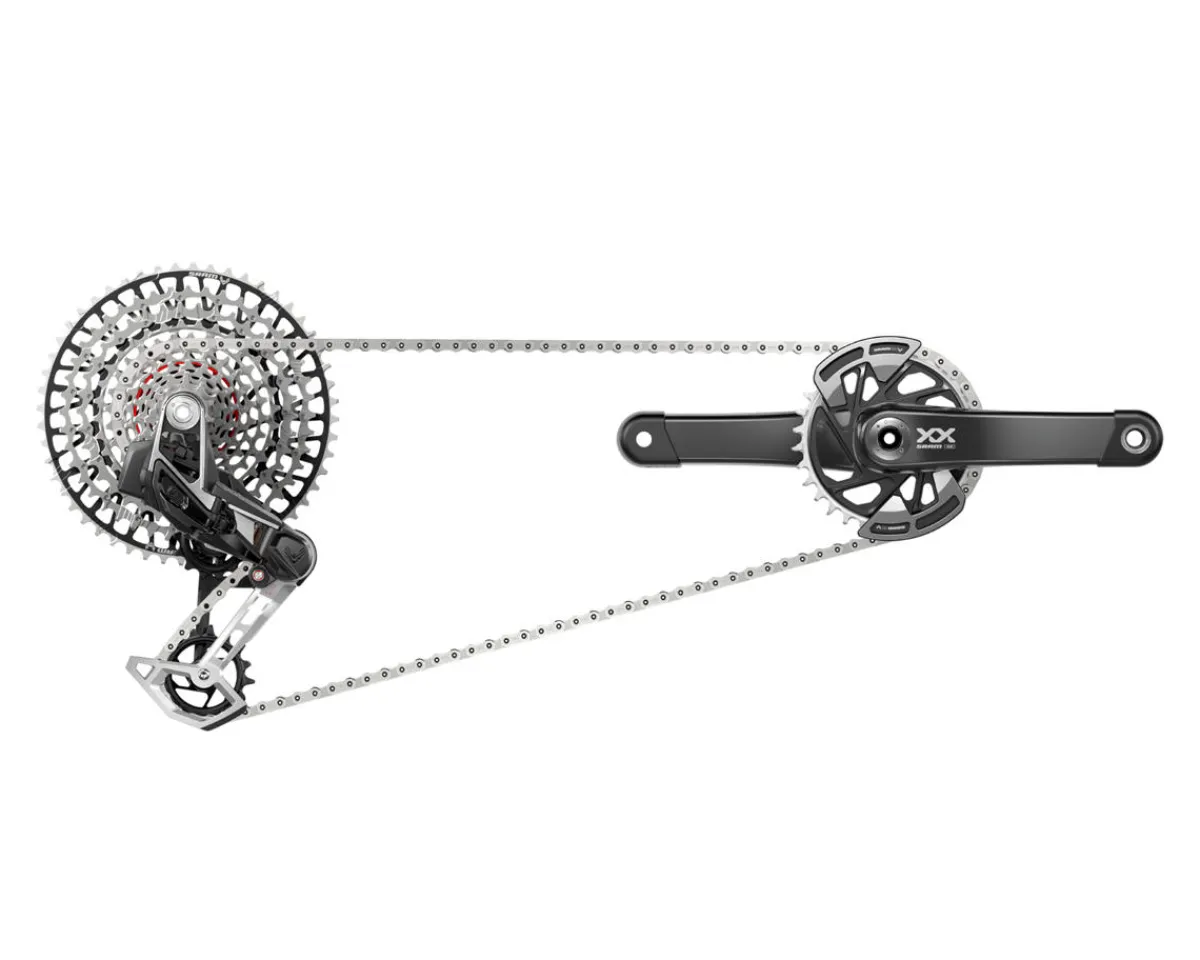

SRAM Electronic Shifting|Groupsets|XX T-Type Eagle Transmission AXS Groupset (Black/Silver) (175mm) (34T) (1 x 12 Speed) (DUB) (55mm Chainline) (UDH)

SRAM XX T-Type Eagle Transmission AXS Groupset Description:

SRAM is dedicated to perfecting the 1x Eagle Drivetrain. The Eagle Transmission integrates the frame, wheel, and drivetrain for optimum stiffness to bring advanced shifting performance. This approach to mountain bike drivetrains sets the bar for how shifting should be.

Eagle Transmission has been designed and engineered for the world’s most demanding riders. Built around the universal constant; the wheel axle. By integrating the derailleur directly into the frame using UDH technology, the result makes for an incredibly strong, fully integrated wireless transmission that literally changes how we ride. The robust design increases the lifespan of the components while shifting flawlessly under maximum power. SRAM recognized the weakest parts of the derailleur and eliminated them. Without a hanger, limit, or finicky b-screws, set up is a breeze. A truly set it and forget it system.

The SRAM XX Transmission is the pinnacle groupset for Trail and Enduro style of riding for anyone wanting unrivaled shifting performance and unprecedented strength. Foundationally changing the relationship between the cassette and derailleur.

Note * The SRAM Eagle Transmission Groupsets are only compatible with frames that are equipped with the UDH “Universal Derailleur Hanger” technology. To check for frame compatibility, head over to SRAM’s UDH Frame Compatibility Finder Tool.
Note ** Eagle Transmission components (derailleur, chain, cassette, and cranks) are not cross-compatible with other SRAM groups.

Features:

• XX Eagle T-Type Derailleur:
• Hangerless interface, fully mounts directly to the frame around the wheel axle itself
• Strength, reliability, and unrivaled performance
• Install and pair using the standard AXS set-up and pairing procedure
• Chain management features
• Magic Wheel will keep spinning if an object becomes lodged in the lower pulley wheel
• Overload Clutch protects the derailleur from damage when hit by rocks or trail debris
• Replaceable skid plates
• AXS Pod Controller:
• Light weight, highly adaptable ergonomics, and adjustability with a premium finish
• “Click and Fire” two-button design
• Paddles can be personalized for complete customization via the AXS App
• Deluxe version allows for interchangeability, choose from concave or convex buttons
• XX Eagle Crankset:
• Light with maximized stiffness
• Carbon with foam core
• Removable and replaceable bash guard system
• Power meter ready
• XX Eagle T-Type Cassette:
• Full X-SYNC improves shifting inboard and outboard while under load
• Features X-DOME with a lighter aluminum 1st gear
• Optimized gear steps on low end
• 55mm chain line compatibility for more moderate chain angle, longer wear and greater precision
• Setup Cog for fool-proof set up
• XD driver body compatible
• XX Eagle T-Type Chain Features:
• Incredibly strong chain designed for shifting under load
• Flattop profile specifically engineered for Eagle Transmission
• Long-wearing hard chrome finish and hollow pins
• AXS Transmission compatible only

Specifications:

• Speed: 1 x 12 Speed
• Shifter Compatibility: AXS Transmission
• Shift Mechanism: Electronic (Wireless)
• Max Cog: 52T
• Bottom Bracket Compatibility: SRAM DUB (BB not included)
• Chainline: 55mm
• Chainring: 34T (T-Type) (Direct Mount)
• Crank Material: Carbon w/ Foam Core
• Drive Type: SRAM XD
• Cassette: 10-52T
• Weights:
• Derailleur: 465g
• Pod Controller: 48g
• Crankset: –
• Cassette: 380g
• Chain: 247g

Includes:

• AXS Transmission Derailleur w/ Battery, Charger and Cord
• AXS Transmission Crankset and T-Type Chainring
• AXS XD Transmission Cassette
• AXS Pod Controller
• AXS Transmission T-type Flattop Chain
• SRAM Chain sizing guide
