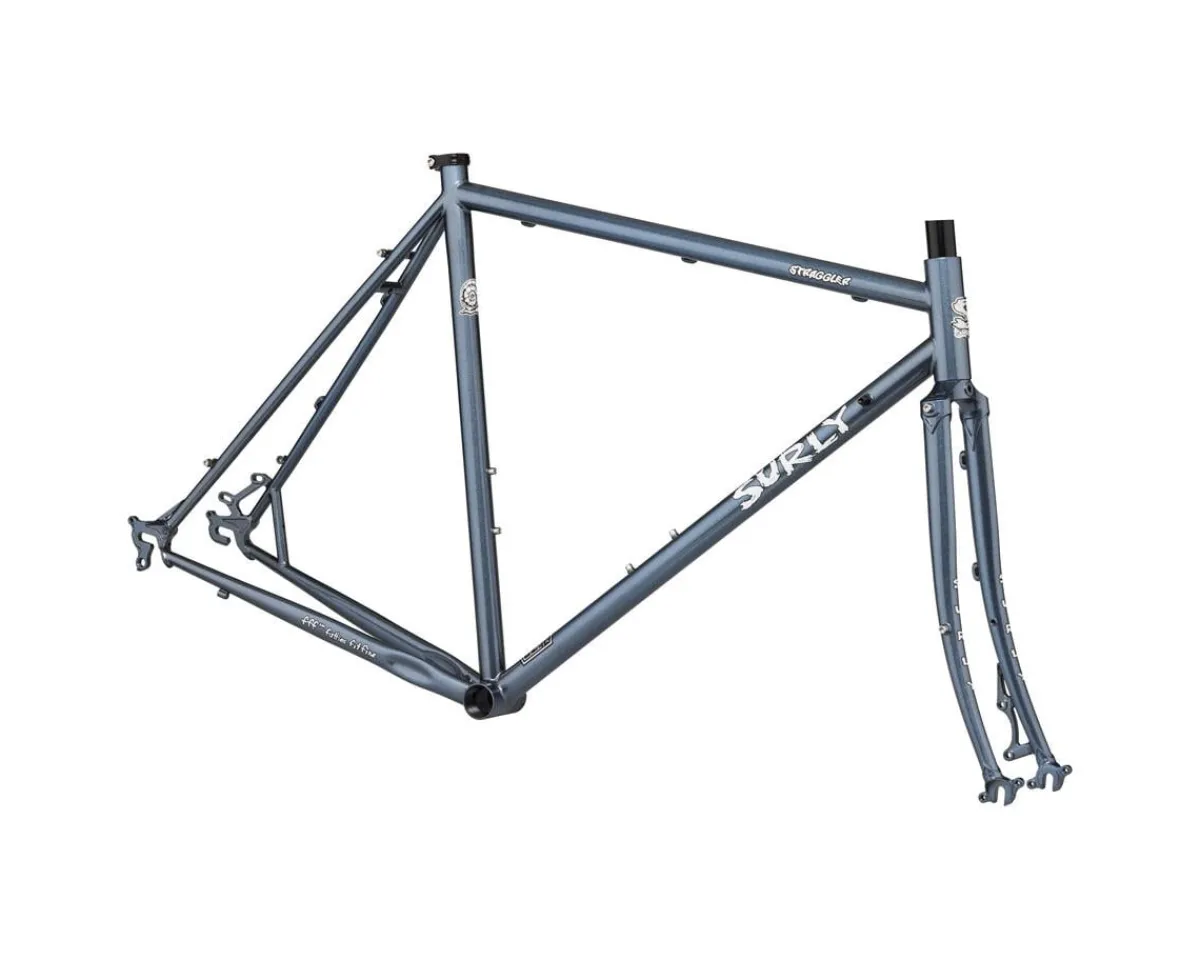

Surly Frames|Gravel Bikes|Straggler Frame (Cold Steel Blue) (650b) (42cm)

Surly Straggler Frame Description:

Straggler shares all of the Cross-Check’s braze-ons for fenders, racks and bottle cages, and like the Cross-Check its ready to take you just about anywhere. It’s a day tripper and a weekender. It’s a ‘rough road’ road bike. It’s a cyclocross bike with no pretense about racing. It’s a utilitarian townie. It’s a light-duty touring bike. It’s an all-weather commuter. And when you get tired of one set up, you can swap parts around and turn it into something else.

Features:

• Fender eyelets at the dropouts, front/rear rack bosses, dual water bottle mounts, and downtube shifter mounts
• 100% Surly proprietary 4130 chromoly tubing. TIG-welded, double-butted main triangle

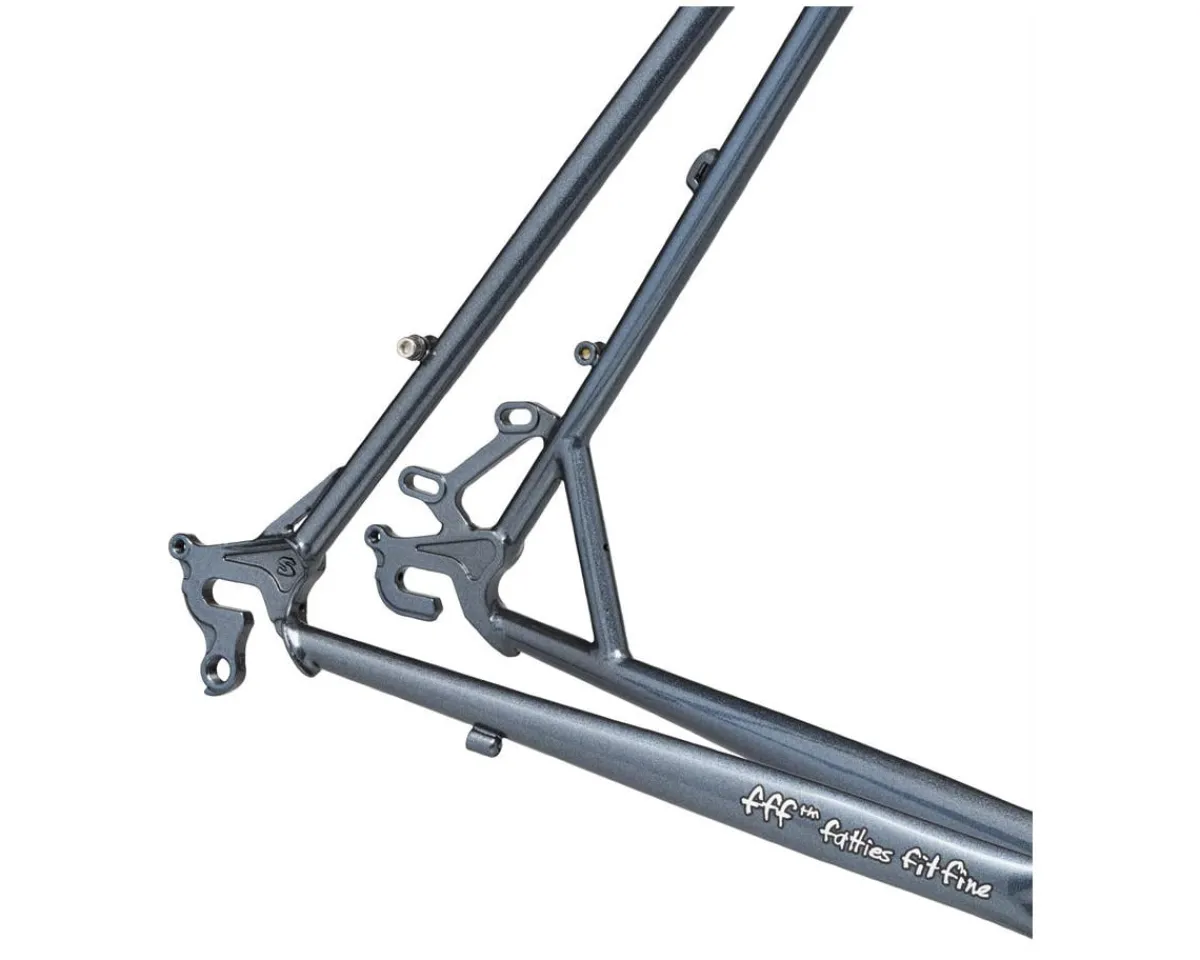

• Forward-exiting horizontal dropouts with adjusters give you singlespeed compatibility
• Wheelbase adjustability helps fit the tires and fenders you want to run with that drivetrain you want to run
• Frame is ED Coated for increased life expectancy

Specifications:

• Frame Material: 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
• Fork Material: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
• Headset: Not Included
• Headset Size: EC34/28.6 (Upper), EC34/30 (Lower) (1-1/8”)
• Brake Compatibility: Disc Only (Hydraulic or Mechanical
• Brake Mounts: Post Mount
• Rotor Compatibility: 160mm Max. (Front), 140 or 160mm (Rear)
• Axle Type: Quick Release
• Hub Spacing: QR x 100mm (Front), QR x 135mm (Rear)
• Stem: Not Included
• Stem Size: 1-1/8″ Steerer
• Seatpost: Not Included
• Seatpost Diameter: 27.2mm
• Seatpost Clamp: Included (Alloy) (30mm)
• Bottom Bracket: Not Included
• Bottom Bracket Type: Threaded BSA
• Bottom Bracket Width: 68mm
• Drivetrain Compatibility: 1x or 2x
• Chainring Compatibility: 1x (Road): 50T, 2x (Road): 39/53T
• Tire Clearance: Various
• Cable Routing: External
• Dropper Post Routing: No
• Water Bottle Bosses: 2 Mounting Positions (Downtube & Seattube)
• Fender/Rack Mounts: Yes
• Front Derailleur Mount: 31.8mm Clamp
• Rear Derailleur Hanger: Included
• Model Year: 2024
• Color: Cold Steel Blue (Blue)
• Tire Clearance (Size 46-52) (Frame):
• 26 x 50mm (With Fenders)
• 650b x 50mm (Without Fenders)
• 650b x 47mm (With Fenders)
• 700c x 35mm (With Fenders)
• 700c x 32mm (With Fenders)
• Tire Clearance (54-64) (Frame):
• 650b x 50mm (With Fenders)
• 700c x 50mm (Without Fenders)
• 700c x 47mm (With Fenders)
• Tire Clearance (46-52) (Fork):
• 27.5 x 2.35″ (Without Fenders)
• 700c x 42mm (Without Fenders)
• 650b x 50 (With Fenders)
• 700c x 38mm (With Fenders)
• Tire Clearance (54-64) (Fork):
• 27.5 x 2.35″ (Without Fenders)
• 700c x 42mm (Without Fenders)
• 650b x 50 (With Fenders)
